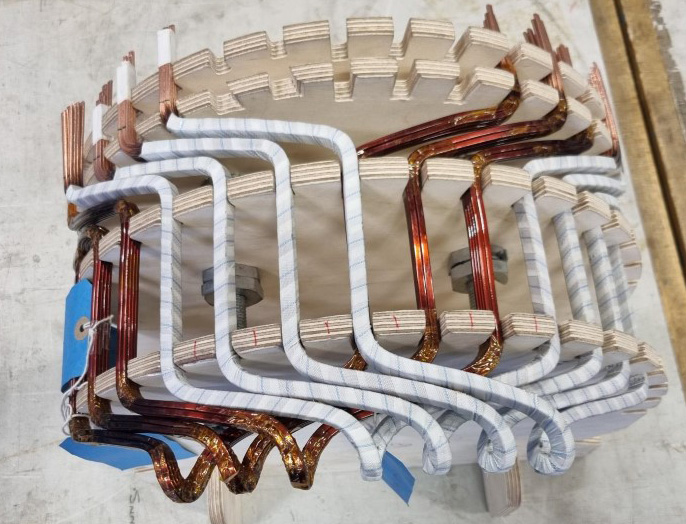

Armature Coils

Electrically active windings positioned on the rotating part of DC machines or universal motors, responsible for EMF generation through electromagnetic interaction.

• Construction & Materials: Constructed from round or rectangular copper wire, precision-layered or lap-wound, with integrated slot liners and conductor interconnections.
• Technical Spec: Typically insulated to Class B, F, or H standards using resin-coated glass tapes, varnish impregnation, or flexible insulating sleeves depending on voltage and duty cycle.
• Applications: DC motors and generators, traction equipment, industrial cranes, mining applications, and electric transportation systems.
• Manufacturing & QC: Coil forming under controlled tension; electrical testing includes resistance and insulation resistance to verify reliability.
