Diamond Coils

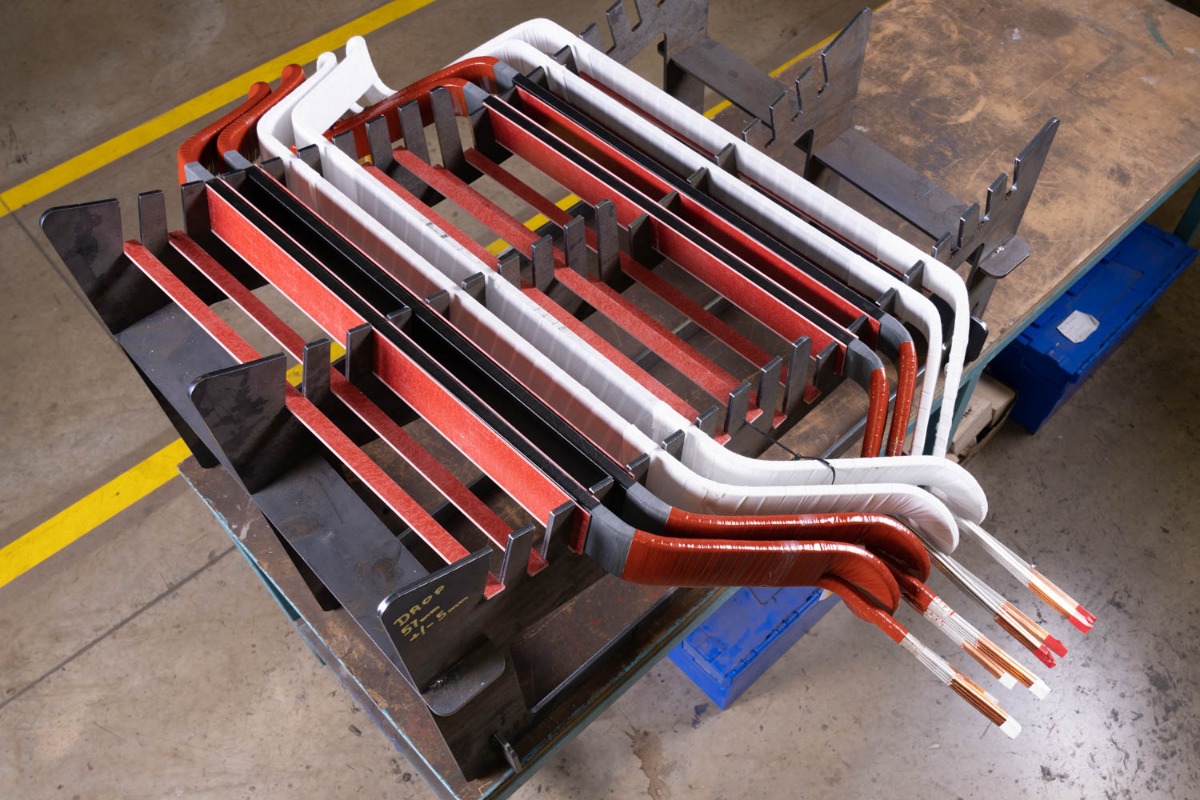

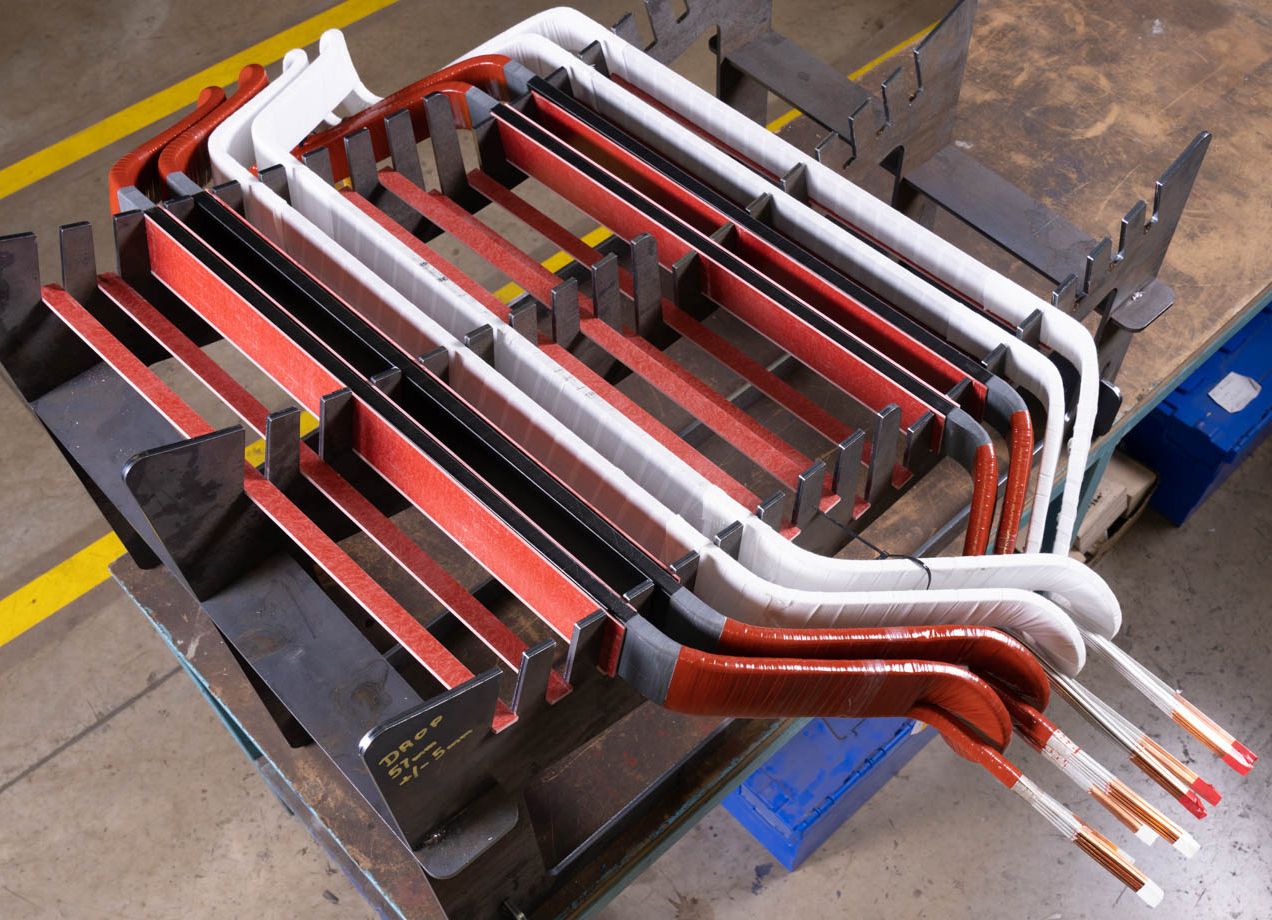

Stator coils with a diamond-shaped configuration, used in high-voltage rotating electrical machines to generate or manage magnetic fields efficiently.

• Construction & Materials: Manufactured using precision-formed copper conductor, soft and hot pressed cell sections. Flexable and fully cured evolute options.
• Technical Spec: Resin Rich or VPI Insulation Systems (from 200V DC to 22kV AC); Up to Class F temperature rise.
• Applications: Medium and high-voltage synchronous generators and motors in power generation, hydroelectric, thermal, and large industrial drive systems.
• Manufacturing & QC: CNC-formed with tight dimensional tolerances; subjected to surge testing, partial discharge analysis, hipot, resistance checks, and thermal cycle validation.
